How to Diffuse LED Strip?

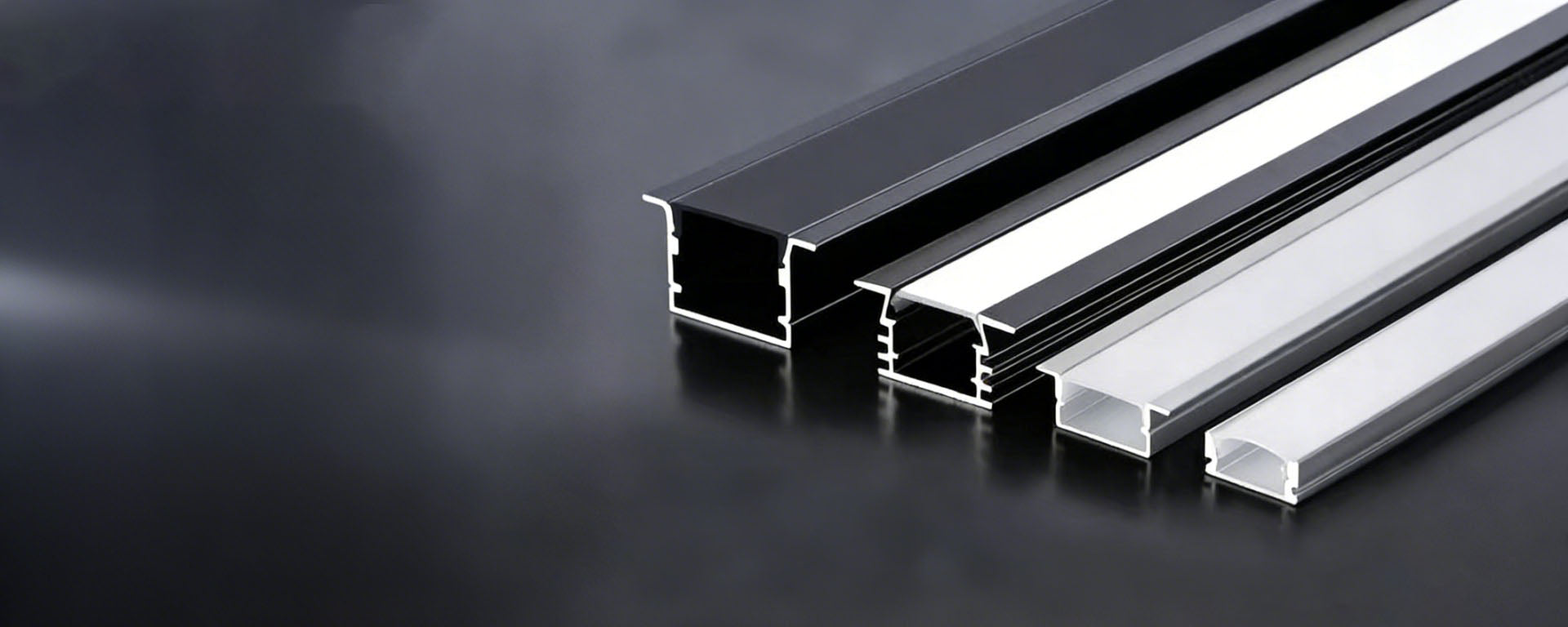

You can achieve uniform light distribution by adding a milky white or frosted diffuser cover, a silicone sleeve, or by embedding the strip into aluminum channels with a frosted lens cover.
Alternatively, you can directly choose LED strips with a soft diffusion drip-coating or spray finish, or purchase specialized diffuse LED strips. These strips eliminate hotspots through their internal structure or packaging technology, delivering soft, even illumination.
How to Install LED Strip Lights?
Installing an LED strip mainly involves three steps:
First, clean the mounting surface, peel off the release paper from the back of the strip, then press it firmly along the desired path.

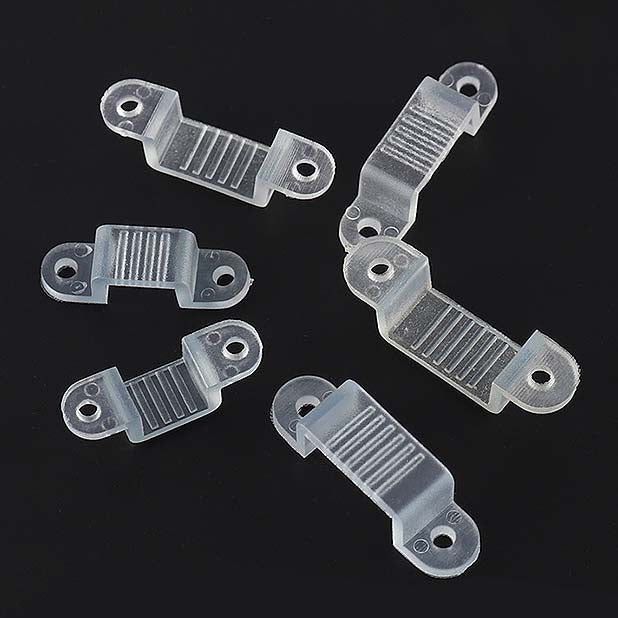

Next, if you need to turn corners or extend the length, use dedicated connectors or soldering.

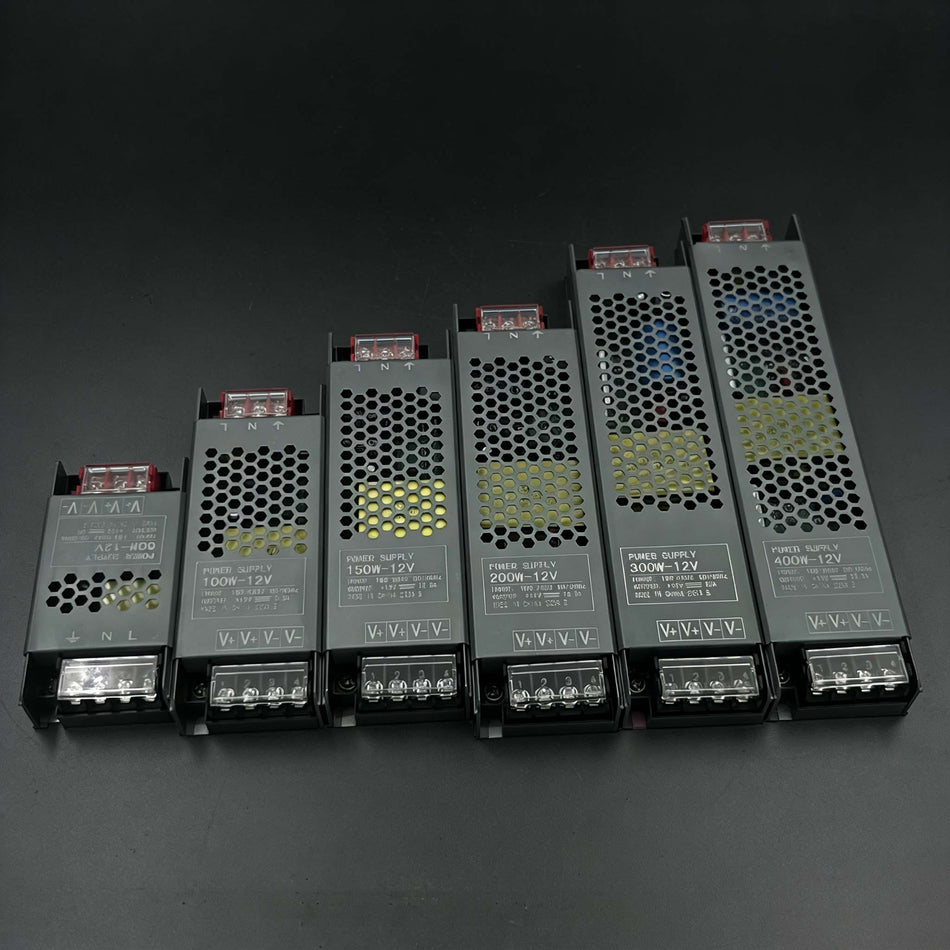

Finally, connect the strip to a compatible power supply/driver, and cut off any excess at the designated cutting marks.
What LED Strips Do Pros Use?

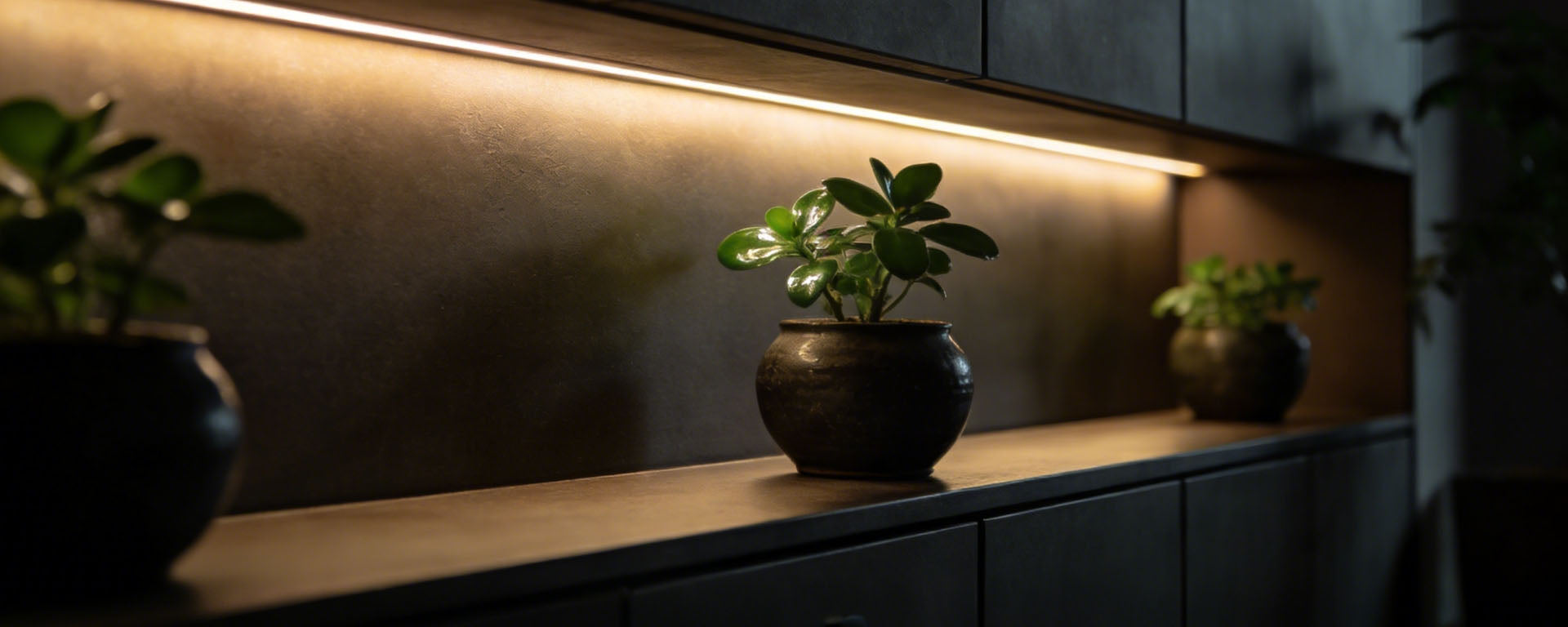

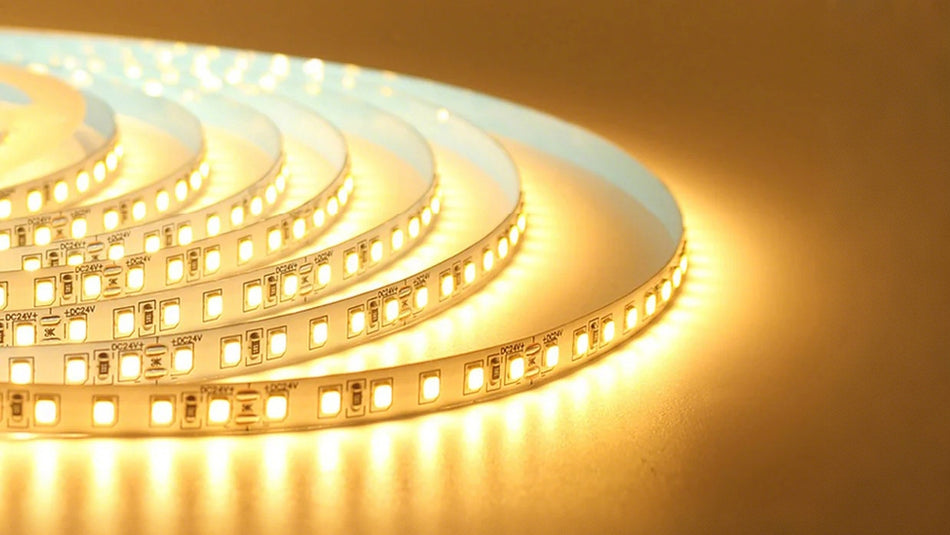

SMD Strips – Mainstream, cost‑effective. Core technology: high‑density SMD packaging (e.g., 180–240 LEDs/m), eliminates hotspots, high brightness, good heat dissipation. Suitable for commercial lighting, under‑cabinet lighting, etc.
COB Strips – Ultimate hotspot‑free lighting. Core technology: COB (Chips‑on‑Board) packaging, gapless emission with no visible dots. Ideal for art galleries, high‑end displays. Lower brightness, higher price.

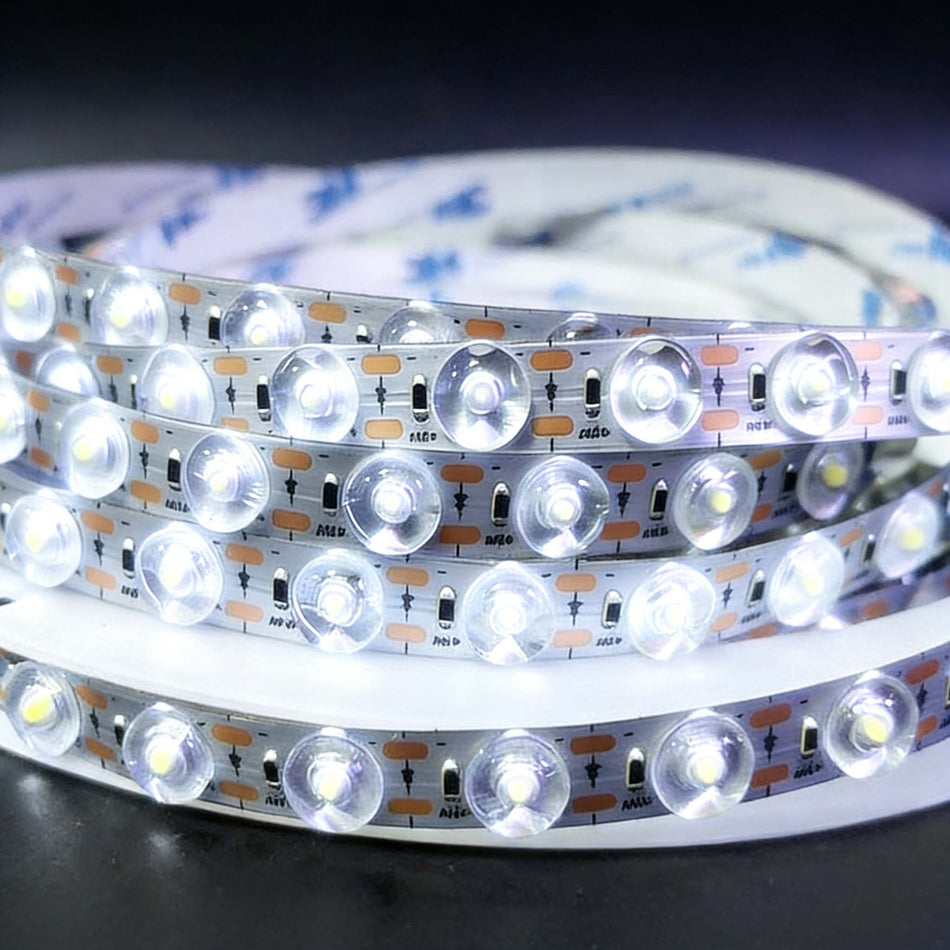

Diffuse Strips – Soft‑diffusion encapsulation (silicone sleeve / frosted coating), uniform light output. Suitable for visible mounting or direct‑view applications.
High CRI Strips – High color‑rendering formulation, Ra ≥ 90, R9 ≥ 50. Ideal for retail, hospitality, photography, and other color‑critical applications.
Tunable White Strips – Alternating cold‑white and warm‑white chips, dual‑channel independent control, achieving stepless CCT adjustment from 2700K to 6500K. Suitable for hotels, offices, homes.
How Much Power Do LED Strips Use?
The power of an LED strip mainly depends on the LED chip type, density, and the power rating of each chip. Conventional products typically range from 4W to 15W per meter (e.g., SMD 2835 with 120 LEDs/m is about 10W). High-brightness or industrial-grade strips can reach 20W–30W per meter. For specific values, check the "W/m" parameter in the product specifications.
What Are Low-Density and High-Density LED Strips?
Low density typically refers to 30–60 LEDs per meter, which is low cost but has noticeable hotspots and uneven brightness. High density refers to 120–240 LEDs per meter, providing more continuous light with no visible dots, making it suitable for professional applications that require a hotspot‑free effect.
