What Is an LED Driver? A Complete Guide to Types and Selection

LED lighting has transformed the way we illuminate our world. From the warm, dimmable downlights in modern living rooms to eye-catching commercial signage and sophisticated smart home systems, LEDs offer unmatched energy efficiency, longevity, and design flexibility that traditional bulbs simply cannot match. They have become the universal choice for lighting, and their presence continues to grow.

However, behind every reliable, flicker-free LED light is an unsung hero: the LED Driver. While often overlooked and housed inside the fixture or hidden in a ceiling cavity, this small electronic device plays a critical role. It protects sensitive LEDs from unstable power and ensures they perform exactly as intended. In fact, choosing the wrong driver or using no driver at all is the number one cause of premature LED failure.

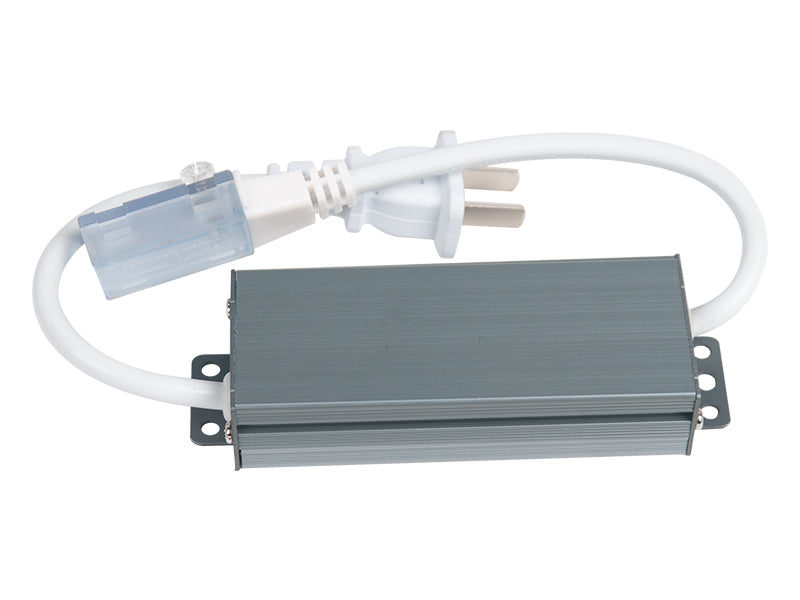

What is a LED Driver?

An LED driver is a specialized, self-contained power supply that converts incoming power, such as standard household AC voltage into the precise low-voltage DC current required by light-emitting diodes (LEDs) to operate safely and efficiently. Unlike traditional incandescent bulbs, which can be connected directly to mains power, LEDs are highly sensitive semiconductor devices. Their performance and lifespan depend entirely on receiving stable, regulated power.

Think of an LED driver as a sophisticated regulator or gatekeeper. Its primary job is to protect the LED from fluctuations in the power source. Even a minor voltage spike or dip can cause an LED to flicker, overheat, or fail prematurely. The driver acts as a buffer, ensuring that regardless of changes in the input voltage whether from the power grid or a battery, the LED receives a consistent and appropriate amount of power.

Modern LED drivers do more than just convert power. High-quality drivers typically include several critical features to ensure safety and performance:

• Current Regulation: Maintaining a constant current to ensure consistent brightness and prevent thermal runaway, a condition where heat leads to more current draw, causing catastrophic failure.

• Protection Circuits: Safeguarding against short circuits, overvoltage, and overheating, which protects both the driver and the costly LED array.

• Dimming Capability: Allowing for smooth brightness control via methods like PWM (Pulse Width Modulation) or analog control signals.

• Efficiency Optimization: Converting power with minimal energy loss, typically achieving 80-90% efficiency to keep energy bills low and reduce heat generation.

Key Takeaway: An LED driver is not just a simple power adapter; it is a sophisticated electronic device that ensures your LEDs perform as intended, last their full lifespan, and operate safely.

How does An LED Driver Work?

The core role of an LED driver is to convert and regulate power to match the specific needs of the LEDs it powers. While the exact process varies slightly by driver type, it generally follows these key steps:

• Power Conversion (if needed): Most drivers begin by converting input power to a form that LEDs can use. AC-DC drivers, the most common type, convert the high-voltage AC power from a wall outlet (110V/220V) to low-voltage DC power, as LEDs run on DC. In other applications, DC-DC drivers adjust an existing DC power source, such as a 12V battery in a vehicle, to the exact voltage or current required by the LEDs.

• Regulation: This step is critical for safe and consistent operation. The driver uses internal electronic circuits to stabilize the output, delivering either a constant current or a constant voltage, depending on the LED's requirements. This ensures that the light output remains steady and the LEDs are protected, even if the input power fluctuates.

• Protection: High-quality drivers continuously monitor their own operation. They include built-in protection circuits that shut down the driver if they detect a problem, preventing damage to both the driver and the LEDs. Common protections include safeguards against overcurrent, overvoltage, overheating, and short circuits.

• Dimming (if applicable): For applications requiring variable brightness, dimmable drivers include additional circuitry. This circuitry interprets a control signal, such as a 0-10V voltage, a TRIAC waveform from a wall dimmer, or a digital DALI command and adjusts the power delivered to the LEDs accordingly, all without causing visible flicker.

Why do LEDs Require An LED Driver?

Unlike traditional "plug-and-play" incandescent bulbs, LEDs cannot be connected directly to a power source. Due to their semiconductor nature, they absolutely require an LED driver (or an integrated power supply) for three fundamental reasons:

• Precise Current Control: LEDs are designed to operate within a very narrow current range to produce light safely and efficiently. Too little current, and the LED will be dim or won't light at all. Too much current, and it will rapidly overheat, leading to immediate burnout or a drastically shortened lifespan. The driver's primary function is to maintain this optimal current range at all times.

• Voltage Compatibility: Most individual LEDs and LED strips are designed to run on low-voltage DC power, typically 12V or 24V. However, standard wall outlets provide high-voltage AC power, ranging from 110V to 240V. An LED driver bridges this gap by converting the high-voltage AC to the low-voltage DC that the LEDs require. In systems where the power source is already DC (like a battery), a driver adjusts that voltage to the precise level needed.

• Stability and Longevity: The voltage from the electrical grid is not perfectly stable; it experiences constant minor fluctuations. Over time, exposure to these fluctuations can degrade LED chips and cause them to fail prematurely. An LED driver stabilizes the power, acting as a buffer that protects the LEDs from these damaging surges and dips, thereby preventing flickering, color shifting, and premature failure.

What Are the Different Types of LED Driver?

LED drivers can be categorized by their output type, method of power conversion, and dimming capability. Choosing the correct type is essential for a given LED application.

- By Output Type: Constant Current vs. Constant Voltage LED Drivers

• Constant Current (CC) LED Driver: This type of driver delivers a fixed output current, measured in milliamps (mA) or amps (A), while allowing the output voltage to vary within a specified range to maintain that current. CC drivers are essential for high-power LEDs like COB (Chip-on-Board) downlights and spotlights, as they directly control the current flowing through the LED, preventing overheating and ensuring consistent light output.

• Constant Voltage (CV) LED Driver: This driver provides a steady, fixed output voltage, usually 12V or 24V DC. The current drawn from the driver is then determined by the load connected to it, based on Ohm's Law. CV drivers are the standard choice for products with integrated current control, such as LED strip lights, LED tape, and modules, where multiple LEDs are connected in parallel.

- By Power Conversion: AC-DC LED Driver, DC-DC Driver, and AC-AC LED Drive

• AC-DC LED Driver: This is the most common type of driver used in residential and commercial general lighting. It takes the high-voltage AC power from the electrical grid and converts it to low-voltage DC power suitable for LEDs. You'll find these drivers powering downlights, panel lights, and LED strips that plug into the wall.

• DC-DC LED Driver: As the name suggests, this driver converts one DC voltage to another. For example, it might step down a 24V DC power source to 12V DC for an LED strip. These drivers are essential in applications where the primary power source is DC, such as in automotive vehicles, RVs, solar-powered systems, and marine vessels.

• AC-AC LED Driver: This is a niche type of driver that modifies the voltage or frequency of AC power without converting it to DC. It is primarily used in specialized applications, such as retrofitting certain types of linear fluorescent fixtures that utilize existing magnetic or electronic AC ballasts.

- By Dimming Method: PWM, 0-10V, and DALI LED Drivers

• PWM LED Driver: PWM, or Pulse Width Modulation, dimming works by rapidly switching the LEDs on and off at a very high frequency, which is imperceptible to the human eye. The brightness is controlled by changing the ratio of "on" time to "off" time. This method provides smooth, color-stable dimming and is commonly used with low-voltage LED strips.

• 0-10V LED Driver: This is a professional-grade dimming method that uses a separate, low-voltage control signal (ranging from 0 to 10 volts) to set the brightness level. A 0-10V signal indicates full brightness, while 0V turns the lights off. This method is known for its smooth, reliable performance and is very common in offices, schools, and commercial buildings.

• DALI LED Driver: DALI, which stands for Digital Addressable Lighting Interface, is a digital protocol that allows for two-way communication between the driver and a central lighting control system. Each driver can be assigned an individual address, enabling complex scene setting, group control, and status monitoring. DALI drivers are the foundation of advanced smart lighting systems in commercial and high-end residential buildings.

How to Choose the Right LED Driver?

Choosing the right LED driver is critical to ensuring your lighting system operates safely, reliably, and efficiently. Focus on three key areas: electrical matching, physical suitability, and compatibility.

- Electrical Matching

The first and most important step is to confirm whether your LED product requires a constant current (CC) or constant voltage (CV) driver. LED strips and tape almost always require a 12V or 24V constant voltage driver. Conversely, individual high-power LEDs, downlights, and spotlights typically require a constant current driver with a specific output current, such as 350mA or 700mA.

Once you know the type, you must properly size the driver. Always follow the 20% safety margin rule: multiply the total wattage of your LED load by 1.2 to determine the minimum wattage your driver should support. For example, a 100W LED load requires a driver rated for at least 120W. This buffer prevents the driver from running at full capacity, reducing heat buildup and significantly extending its lifespan.

- Environment

The physical environment where the driver will be installed is just as important as its electrical specifications. Drivers are rated with an IP (Ingress Protection) rating that indicates their resistance to dust and moisture. Choose a driver with an appropriate IP rating for your location:

• IP20 is suitable for dry, indoor areas like living rooms and bedrooms.
• IP44 is recommended for areas prone to moisture or splashes, such as bathrooms and kitchens.
• IP65-67 is required for outdoor locations, damp environments, or anywhere the driver may be exposed to rain or direct contact with water.

Also, verify the driver's specified operating temperature range. If it will be used in an attic that gets extremely hot or an unheated garage that freezes, ensure the driver is rated for those conditions.

- Compatibility

f your lighting design requires dimming, you must choose a driver specifically labeled as "dimmable." Furthermore, the driver must be compatible with your chosen dimming method. For example, a driver intended for a commercial office with a centralized control system might need to support 0-10V dimming, while a residential downlight might require a TRIAC-dimmable driver to work with a standard wall dimmer. Using an incompatible combination will result in poor performance, such as flickering, buzzing, or even damage to the equipment.

Common Applications of LED Drivers

Residential Lighting

• Downlights: These ubiquitous ceiling lights commonly use Constant Current drivers for COB (Chip-on-Board) LED modules or Constant Voltage drivers for modular systems. They are found in living rooms, kitchens, and hallways.

• Spotlights: Used to highlight artwork or architectural features, spotlights typically require Constant Current drivers to ensure stable, consistent brightness over time.

• LED Strips: Popular for under-cabinet lighting, cove lighting, and accent lighting, LED strips almost exclusively use Constant Voltage (12V or 24V) drivers. When dimming is desired, they are often paired with a PWM dimming driver for flicker-free control.

- Commercial & Industrial Lighting

• Panel Lights: Replacing old fluorescent troffers in office ceilings, LED panel lights typically use Constant Current drivers. In modern offices, these drivers are often equipped with 0-10V or DALI dimming for centralized lighting control and energy savings.

• High-Bay/Low-Bay Lights: Found in warehouses, factories, and large retail spaces, these high-output lights demand robust, high-wattage Constant Current drivers with built-in thermal protection to withstand challenging conditions.

• Linear Lighting: Used for hallways, shelves, and retail displays, linear LED systems often run on Constant Voltage (24V) drivers and may incorporate PWM or 0-10V dimming for dynamic effects.

- Automotive & Outdoor Lighting

• Automotive Lights: LED headlights, taillights, and interior lights in vehicles rely on compact, durable DC-DC drivers that can efficiently run LEDs from the vehicle's 12V or 24V DC electrical system.

• Streetlights: Municipal street lighting requires highly reliable, high-wattage AC-DC Constant Current drivers. These drivers are built into rugged housings with high IP ratings to withstand years of exposure to rain, dust, and temperature extremes.

• Landscape Lighting: To safely illuminate gardens, pathways, and patios, landscape lighting systems use low-voltage Constant Voltage drivers (12V or 24V). These drivers are always rated for outdoor use, typically with an IP65 or higher rating.

Frequently Asked Questions (FAQs)

Q1: How do I know if my lights need a Constant Current or Constant Voltage driver?
A: Always check the product label or specifications. LED strips will almost always specify an input voltage, like 12V or 24V, indicating they need a Constant Voltage driver. Individual LED modules, downlights, or high-power LEDs usually specify a drive current, such as 300mA or 700mA, meaning they require a Constant Current driver.

Q2: Can I use a 24V LED driver for a 12V LED strip
A: No, absolutely not. The voltage output of the driver must match the voltage requirement of the LED strip exactly. Connecting a 12V LED strip to a 24V driver will supply double the intended voltage, instantly causing the LEDs to overdrive, overheat, and burn out.

Q3: How do I calculate the power supply size for my LED strip? Do I need to leave extra capacity?
A: First, calculate the total wattage of your strip by multiplying the wattage per meter by the total length of the strip in meters. Then, apply the 20% safety margin rule: multiply that total wattage by 1.2. This result is the minimum wattage your driver should be. For example, a 60W strip needs a driver rated for at least 72W (60W x 1.2). This extra capacity prevents the driver from overheating and significantly extends its life.

Q4: Are all LED drivers dimmable?
A: No, not all LED drivers are dimmable. Using a non-dimmable LED driver with a dimmer switch will cause the driver to fail, buzz loudly, or the lights to flicker erratically. If you need dimming functionality, you must specifically purchase a driver labeled as "dimmable" and ensure it is compatible with your dimming method (e.g., TRIAC, 0-10V, PWM).

Q5: Why are my LED lights flickering?
A: Common causes include: voltage fluctuations in the grid, an incompatible dimmer switch, the driver being overloaded, or (finally) a faulty driver.

Q6: What causes LED driver failure?
A: The most common cause is heat. Continuous high temperatures dry out the internal electrolytic capacitors, leading to failure. Other causes include: power surges, overloading (exceeding the wattage rating), and using a non-dimmable driver on a dimmer circuit.

Q7: How long do LED drivers last?
A: Average lifespan is 20,000 to 50,000 hours. The driver usually fails first because it contains electrolytic capacitors, which are sensitive to heat. Heat is the #1 killer of drivers.

Q8: Can I use an LED without a driver?
A: No, you cannot use a standard LED (like an LED chip or strip) without a driver because LEDs require precise current control to operate safely, and plugging them directly into a high-voltage wall outlet will instantly destroy them.
