Ever calculated the annual waste from flickering, frequently failing office fluorescent lights? Beyond recurring replacement costs and high energy bills, their poor performance strains eyes, dulls focus, and hampers productivity. Worse, mercury content raises environmental risks, mismanagement could even create legal liabilities.

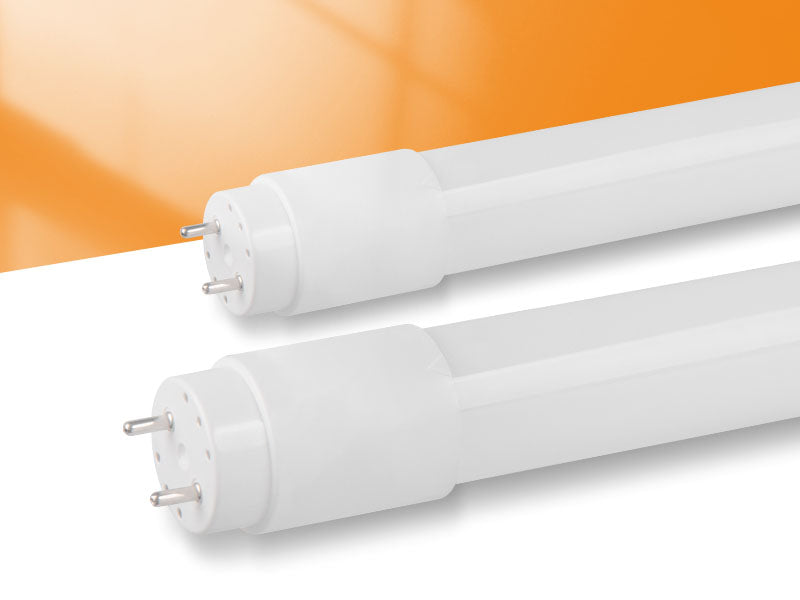

The solution? Retrofit with LED tubes. These drop-in upgrades deliver superior color rendering for comfort, cut energy use by 30-50%, last 50,000+ hours, and are mercury-free. Easy to install with fewer malfunctions, they’re a smarter, cost-effective choice.
There are two main types: "ballast compatible" and "ballast bypass" LED replacements. Here’s how they difference:
1.Ballast-Compatible LED Replacement Tubes (Type A - "Ballast Compatible"/"Plug-and-Play")
[Working Principle] Equipped with a built-in driver, it is compatible with existing fluorescent light ballasts (primarily electronic ballasts).
[Key Advantage] Extremely easy to install—no need to modify any internal wiring or structure of the fixture. Simply replace the old T5/T8 fluorescent tube directly, just like changing a traditional tube.
[Suitable Scenarios] Situations where the existing ballast is in good condition, and users prefer not to or cannot modify the wiring.
[Potential Drawbacks] Slightly lower energy efficiency compared to Type B (due to power conversion through the ballast); lifespan is affected by the condition of the existing ballast (if the ballast fails, the tube will not light up).
2.Ballast Bypass LED Replacement Tubes (Type B - "Ballast Bypass"/"Direct-Wire")
[Working Principle] Features a built-in driver, designed to bypass and remove the existing ballast, connecting directly to line voltage AC power (e.g., 110V/220V).
[Key Advantages]
a. Highest energy efficiency: Eliminates ballast energy loss, achieving maximum energy savings (typically 10-15% more efficient than Type A).
b. Longest lifespan: Unaffected by failures of aging ballasts, offering higher reliability.
c. Lowest long-term costs: More significant savings on electricity bills and elimination of ballast replacement/maintenance expenses.
[Installation Requirements] Requires a licensed electrician to rewire the fixture internally, removing or bypassing the existing ballast and connecting the socket wiring directly to the AC input voltage. Installation costs are relatively higher.
[Suitable Scenarios]
a. Existing ballast is damaged or aging.
b. Pursuit of maximum energy efficiency and longest service life.
c. New fixture installations (designed and installed directly for Type B, eliminating ballast costs).
d. Willingness to invest in one-time retrofitting for maximum long-term benefits.
How to Install Ballast Bypass (Type B) LED Retrofit Tubes
While Type B tubes require electrical modifications, they deliver optimal performance (energy efficiency lifespan). Below is the professional installation process:
[Step 1 Power Disconnection] Ensure the power to the circuit containing the fixture is completely turned off. Verify no electricity is present using a voltage tester or similar tool to guarantee safety.
[Step 2 Remove Old Components] Take out the existing fluorescent tubes, then remove the fixture’s cover or lens to expose internal wiring, ballast, and sockets.
[Step 3 Handle the Ballast]
a. Locate the ballast (typically a rectangular box), then disconnect its input wires (connected to the power supply) and output wires (connected to the sockets);
b. Remove the ballast (for safer, cleaner setup) or fully bypass it (ensure it is not connected to the circuit). Follow product instructions or electrician recommendations for specifics.
[Step 4 Rewiring]
a. Connect the live wire (L) directly to the corresponding terminal on one end of the socket;
b. Connect the neutral wire (N) directly to the corresponding terminal on the other end of the socket;
c. Ensure correct polarity (if the tube/socket has polarity requirements);
d. Dispose of the discarded ballast in accordance with electronic waste regulations.
[Step 5 Install the New Tube] Insert the Type B LED tube into the socket in the indicated direction (usually marked).
[Step 6 Testing Restoration] Reattach the cover/lens, restore power, and test if the tube operates normally.
Key Reminders:
[Must be installed by a qualified electrician] Electrical modifications are involved. Improper handling by non-professionals risks electric shock and may violate electrical codes.
[Read the manual] Minor wiring differences may exist between Type B tubes of different brands/models; strict adherence to instructions is required.
[Check compatibility] Ensure the fixture structure (space, socket type, etc.) is suitable for retrofitting.
[Significant long-term benefits] Though installation costs are slightly higher, extreme energy efficiency and extended maintenance-free operation reduce total cost of ownership.
Lumosmith LED Retrofit Tubes for Efficient, Energy-Saving Lighting
For office lighting upgrade needs—delivering reliable performance, exceptional energy savings, and hassle-free installation—we recommend our high-quality Lumosmith LED tube solutions.
[T8 LED Tubes] These are all "Plug and Play" type, requiring no ballast bypass operations. They are easy to install and compatible with traditional fixtures.
[T5 LED Tubes] This range eliminates the need for tube brackets; simply connect to a power cord. The tubes can be linked together and shaped flexibly to suit spatial requirements.
[Replacement Fixture Solutions]
a. If existing fixtures are outdated, or you wish to upgrade to smart dimmable LED lights (enabling precise control and reducing energy waste), replacing the fixtures is a more convenient option:
b. Disconnect power to the old fixtures and connect the new ones to the existing wiring. We offer fixtures tailored to various scenarios, including residential downlights, spotlights, and ceiling lights, as well as commercial grid lights, panel lights, and light strips.
LED tubes deliver significant energy savings and enhanced lighting experiences for office environments. The choice can be flexibly made based on the condition of existing fixtures and budget:
- If the ballast is in good condition and you’re seeking a low-cost, quick upgrade, choose Type A (Plug-and-Play);
- If the ballast is aging and you’re focused on long-term benefits, choose Type B (Ballast Bypass);
- If a complete fixture refresh or smart control functionality is needed, opt for full LED fixture replacement.
Whichever solution you select, it will address the drawbacks of traditional fluorescent lighting, reduce long-term operational costs, and provide higher-quality lighting support for your office environment.
