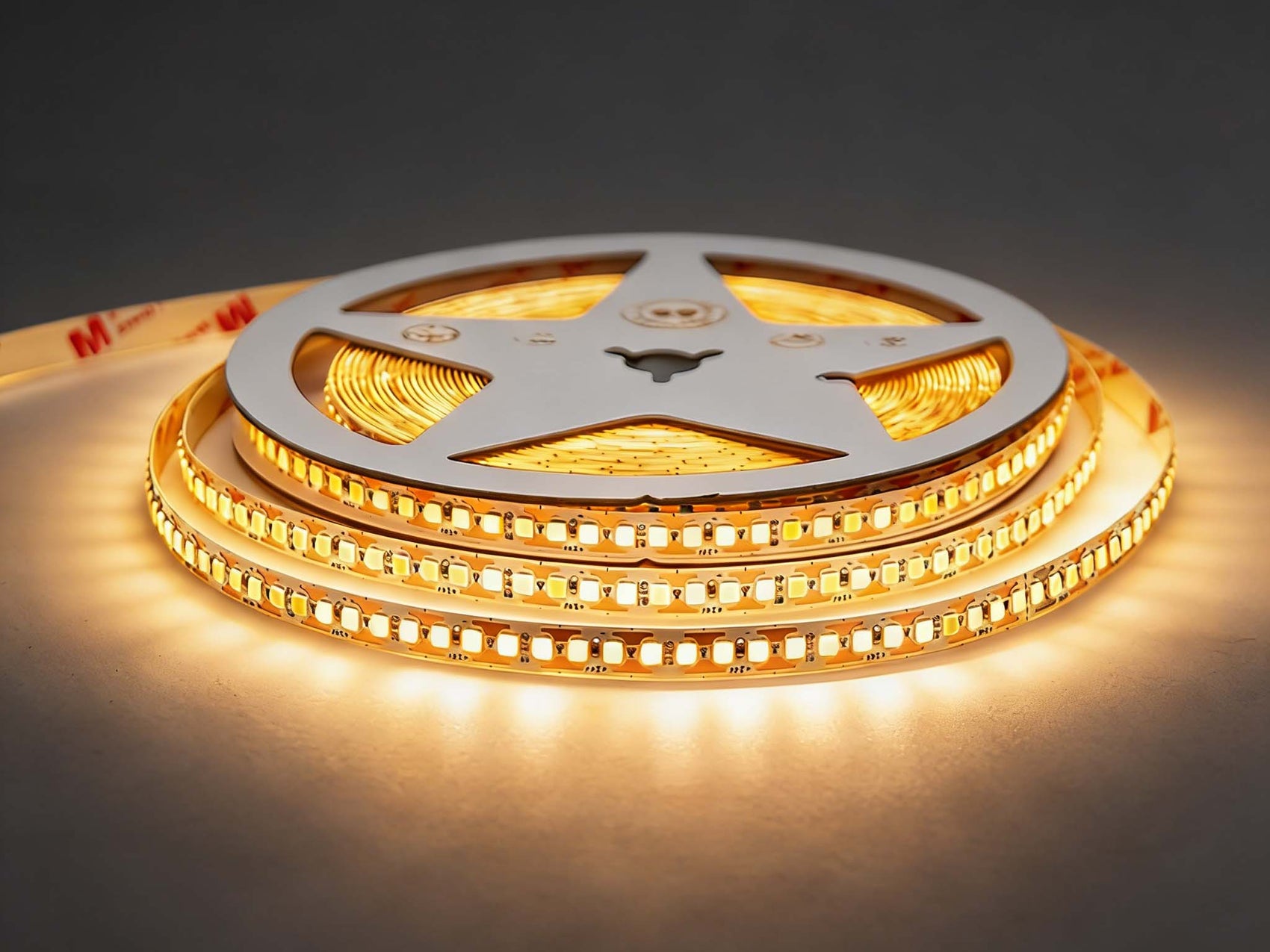

LED strip lights have become a staple in home ambiance, commercial decor, and industrial accent lighting. However, different voltage options serve vastly different purposes. How do you choose between 12V, 24V, 36V, and 120V LED strips?
What are the core differences, and what happens if you pick the wrong one? Many buyers focus only on brightness and color, only to realize later they are dealing with severe voltage drop, excessive heat, or an inability to cut the strip where needed.
Basic Knowledge of LED Strip Voltage
The "voltage" of an LED strip refers to the power supply required for proper operation. The most common strips on the market fall into two categories: Low Voltage Direct Current (DC) and High Voltage Alternating Current (AC).
- Low Voltage DC Strips: Common specifications are 12V, 24V, and 36V. These all fall within the safe touch voltage range (≤36V). They pose no electric shock risk and are safe for direct contact, making them ideal for homes, retail displays, and DIY projects where people might interact with them.
Note: Low voltage strips require a dedicated constant voltage driver (power adapter) and cannot be plugged directly into a wall outlet.
- High Voltage AC Strips: Common specifications are 120V (or 220V in some regions). These can be connected directly to mains electricity without bulky transformers. They can run up to 50–100 meters from a single power source with no visible dimming.
However, because the voltage exceeds safety limits, there is a significant risk of electric shock and fire hazards. Installation must be handled by a licensed electrician with proper insulation. These are generally reserved for outdoor or commercial architectural lighting where human contact is impossible.
Why Does Voltage Impact Performance?
- Voltage Drop: LED strips use copper traces to conduct electricity. The longer the distance and higher the current, the greater the line loss. With low-voltage strips (12V/24V/36V), once you exceed a certain length, the voltage at the far end decreases, causing dimming. Higher voltage means lower current for the same wattage, allowing for longer runs without drop.
- Brightness and Heat: With the same number of LEDs, higher voltage results in lower operating current. This means less heat generated by the driver chips and copper traces, leading to slower lumen depreciation over time.
- Cutting Flexibility: Low voltage strips are typically cuttable every 3 or 6 LEDs (one cut unit). Higher voltage strips usually contain more LEDs per cut unit (e.g., 3 LEDs for 12V vs. 6 LEDs for 24V). This means high-voltage strips offer less precision for intricate shaping.
Understanding these basics will help clarify the specific differences and applications outlined below.
Key Differences Between 12V, 24V, 36V, 120V LED Strips
These four voltages differ significantly in power type, max run length, brightness capability, safety level, and cost.
- Power Type: 12V, 24V, and 36V are DC low voltage requiring dedicated drivers/adapters. 120V is AC high voltage and connects directly to mains power (sometimes with a simple rectifier plug).
- Max Run Length (No Drop): The lower the voltage, the more pronounced the drop.
- 12V: 5–8 meters
- 24V: 10–15 meters
- 36V: 15–20 meters
- 120V: 50–100 meters (virtually no visible dimming on a full reel).
- Brightness and Load Capacity: 12V offers medium brightness suitable for small accents. 24V provides even brightness for most home and commercial needs. 36V and 120V offer high brightness and strong load capacity for long, demanding runs.
- Safety Level: 12V, 24V, and 36V are safe to touch (human-safe voltage). 120V is high voltage, posing a severe shock risk and requiring professional installation with proper insulation.
- Cost: 12V is the most affordable overall. 24V offers the best price-to-performance ratio. 36V tends to be pricier due to less common drivers and controllers. 120V may seem cheap per foot, but when factoring in professional installation and safety gear, the total cost is the highest.
These differences directly determine the right choice for your project. Let's dive deeper into each voltage type.
Which Voltage to Choose for Your Project?
12V LED Strip: The Precision Choice for Small Projects and DIY
- Pros: The core advantage is superior safety. Operating on low voltage DC, it is safe to touch with no shock risk which is perfect for kids' rooms or areas where the strip might be exposed. Additionally, the short cut intervals allow for extreme flexibility in tight spaces and intricate designs, such as detailed display cases or model lighting.
- Cons: Voltage drop is noticeable beyond 5 meters. To maintain uniform brightness on longer runs, you will need to inject power from both ends or use signal amplifiers.
- Applications: Ideal for small-scale home use and DIY: under-cabinet lighting, bedside ambiance, accent walls, RV and automotive lighting, and shelf displays. It's the go-to for beginners due to its low cost and easy setup.
24V LED Strip: The Cost-Effective All-Rounder for Home Interiors
Pros: Like 12V, 24V is low voltage DC and perfectly safe for DIY installation without an electrician. It is the industry standard that balances usable length with safety. Most smart controllers (WiFi, RF) are natively designed for 24V, ensuring excellent compatibility.
Suggestion: If your single run is between 7 and 15 meters, 24V is the sweet spot. It eliminates the hassle of mid-run power injection while keeping costs reasonable.
Applications: Covers most residential and light commercial needs: living room tray ceilings, bedroom cove lighting, stair tread lights, retail window displays, and small signage. It delivers uniform brightness with practical usability.
36V LED Strip: The Commercial Long-Run Solution
Pros: 36V is at the upper limit of the "safe touch" voltage range, making it very safe for high-traffic areas like malls or children's play zones. The main advantage is bridging the gap between low-voltage safety and high-voltage distance. The lower current means less heat buildup and slower lumen degradation over the long term, enhancing durability.
Cons: 36V drivers and controllers are not as readily available on retail shelves as 12V/24V options. They are often found in professional lighting supply channels.
Applications: Perfect for medium-to-large commercial spaces where safety is paramount: hotel corridors, large retail decor, high-end villa cove ceilings requiring seamless 20-meter connections, and amusement parks.
120V AC LED Strip: Industrial or Architectural Only
Warning: Unlike the previous three options, 120V is high voltage. There is a serious risk of electric shock. This product is NOT for DIY installers or residential use where contact is possible. Installation must be done by a qualified electrician with proper weatherproofing and insulation.
Pros: The ability to connect directly to mains power without a bulky driver. You can run a single line for 100 feet (or meters) with zero voltage drop, saving time on large-scale installations.
Cons (Important Warnings):
-
Flicker: These strips often lack constant current regulation, resulting in visible flicker in video recordings and potential eye strain.
-
Safety Hazard: If the outer insulation is nicked or damaged, the entire metal body of the strip becomes electrified.
-
Repairability: If one LED fails, the entire segment usually dies and cannot be easily patched like low-voltage strips.
Applications: Large-scale commercial and architectural lighting where the strip is out of reach: outdoor building outlines, factory floor lighting, temporary event staging, and large monument lighting. Not recommended for residential interiors.
12V vs 24V LED Strip: Full Installation & Performance Comparison
The difference between 12V and 24V goes beyond the power supply. It impacts voltage drop, brightness consistency, wire gauge, and installation complexity.
For most indoor, under-cabinet, and smart LED projects, choosing between 12V and 24V determines the cleanliness and reliability of the final setup.
12V LED Strip: Installation Notes
- Shorter Run Limits: Dimming becomes visible after 5 meters without power injection.
More Frequent Power Feeds: Longer runs require power at both ends or inline amplifiers.
- Higher Current Draw: Achieving the same brightness requires more amperage, which may necessitate thicker wires to prevent overheating.
- Widespread Accessories: 12V adapters, dimmers, and controllers are cheap and abundant.
DIY Friendly: Ideal for small projects, automotive lighting, and hobbyist applications.
24V LED Strip: Installation Notes
- Longer Single Runs: Maintains consistent brightness over 10–15 meters, greatly simplifying wiring layouts.
- Fewer Power Injection Points: Cleaner installation with fewer wires and power supplies to hide.
- Lower Current: Runs more efficiently, generates less heat, and allows for thinner, more flexible wiring.
- Smart Home Ready: Most modern LED controllers (WiFi, RF, DMX, 0-10V) are designed around the 24V standard.
- Same Safe Touch Experience: Just as safe to handle as 12V, requiring no professional electrician for installation.
In Short:
- Choose 12V for small, short-distance DIY projects where precise cutting is essential.
- Choose 24V for longer runs, cleaner wiring, and professional-looking smart lighting systems.
LED Strip Lights Frequently Asked Questions
Q1: Should I choose 12V or 24V for home use?
A: For small areas (cabinets, headboards) choose 12V. For large areas (living room ceiling coves) choose 24V.
Q2: Why are 36V strips more expensive than 12V?
A: The primary reason is the higher cost of drivers and controllers. Additionally, they offer higher load capacity and are designed for commercial/industrial applications where safety and long runs are prioritized.
Q3: Can 120V strip lights be used at home?
A: The core reason for the higher cost is the driver and its stronger load capacity and higher safety rating, making it suitable for industrial and commercial professional scenarios, which naturally drives up the cost. (Safety Warning: 120V is not safe to touch and is generally not advised for accessible residential areas).
Q4: Is there a difference in lifespan between the four voltages?
A: Lifespan depends primarily on the quality of the LED chip itself, not the voltage. General home-use LED strips last between 5 and 10 years with proper installation and heat dissipation.
Q5: What happens if I choose the wrong voltage?
A: Connecting a low-voltage strip to high voltage will instantly burn it out. Connecting a high-voltage strip to low voltage will result in no light or very dim light.
Q6: I need a continuous 20-meter run without breaks. Which voltage should I pick?
A: Consider 36V low voltage or 120V high voltage strips for this scenario.
